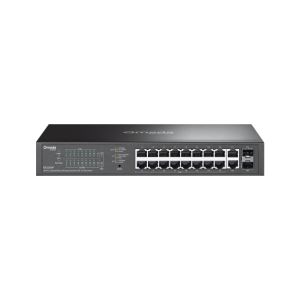

TP-Link ES220GP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

IMG 1 of 8
Our Price:
$338.80
or quickly purchase this product
Backorder
Part Number:
557772
(?) Brand:
TP-Link
Manuf No:
ES220GP
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
ES220GP, NWTLES220GP, NWTL-ES220GP

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

  • 18 10/100/1000Mbps RJ45 ports (16 802.3af/at-compliant PoE+)
  • 2 Gigabit SFP Slots
  • 150W PoE Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • Up to 820ft PoE**, Remote Camera Reboot, QoS, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack mounting design

Omada 20-Port Gigabit
Easy ManagedSwitch
Switch with 16-Port PoE+

ES220GP

  • 20 Gigabit Ports
    (16 PoE+, 2 RJ45,
    2 SFP)

  • 150W Total PoE
    Budget*

  • Up to 250m PoE Transmission**

  • Easy Centralised Management

  • Automatic Loop Prevention

  • PoE Auto
    Recovery

  • Traffic
    Separation

  • Traffic
    Prioritisation

Omada Central Essentials A Free and Easy Cloud-Based Network Management

Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Learn More >
Cloud Access
Web Browser
Or
Omada App
Omada Cloud Essentials
Omada Gateways
Omada Switches
Omada
Access Points
Cloud
Internet

  • Lifetime Free
    Cloud Without
    Additional Fees

  • Manage and
    Monitor Anytime
    via App or Web

  • Unlimited
    Management Scale
    for Multiple Sites

  • Comprehensive
    Managed
    Portfolio

  • Super-Easy Setup
    with Automatic
    Device Identification
    and ZTP

  • Easy-to-Use
    Networking for Surveillance Including Remote Camera
    Reboot

  • Free Video
    Monitoring Including
    Third-Party Camera Management

  • Topology, Site Map,
    and Troubleshooting Tools for Efficient Maintenance

Abundant Functions for Reliable Surveillance Networking

  • Transmission Distance up to820ft (250 m)**

  • Priority Video Quality Guaranteed

  • Secure Traffic Separation via Port Isolation

  • Remote Camera
    Reboot

Multiple Application Scenarios

  • Surveillance

    Works with IP Cameras

  • Wi-Fi Coverage

    Works with Access Points

  • Wired Connections

    Works with Non-PoE Devices such as PCs and Printers

HARDWARE FEATURES
Interface 18 10/100/1000 Mbps PoE+ RJ45 Ports (16 802.3af/at-compliant PoE+)
2 Gigabit SFP Slots
Auto-Negotiation/Auto MDI/MDIX
Fan QuantityFanless
InstallationDesktop/Rackmount
Physical Security Lock
Power Supply100240V AC, 50/60Hz 2.5A
PoE Ports (RJ45) Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 16 Ports
PoE Budget: 150W available for all PoE+ ports, 30W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery
Up to 250m PoE transmission distance**
Dimensions ( W x D x H )11.6 7.1 1.7 in (294 180 44 mm)
Surge Protection6 kV
PERFORMANCE
Switching Capacity40 Gbps
Packet Forwarding Rate29.76 Mpps
MAC Address Table8K
Packet Buffer Memory4 Mbit
Jumbo Frame15 KB
SOFTWARE FEATURES
Quality of Service Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP
L2 Multicast IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission MethodStore-And-Forward
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
OTHERS
CertificationFCC, CE, RoHS
Package Content ES220GP
Power Cord
Mounting Brackets
Rubber Feet
Screws
Installation Guide
Environment Operating Temperature: -5~40 (23F~104F)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
