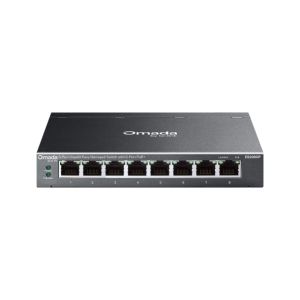

TP-Link ES208GP Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+, 8× Gigabit PoE+ Ports , 802.3at/af, 64 W PoE Power, Desktop Steel Case an

IMG 1 of 5
Our Price:
$104.70
RRP:
$109.00
You Save:
$4.30
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
559852
(?) Brand:
TP-Link
Manuf No:
ES208GP
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ES208GP, NWTLES208GP, NWTL-ES208GP

ES208GP

Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+

  • 8 10/100/1000Mbps RJ45 ports (8 802.3af/at-compliant PoE+)
  • 64W Power Budget, with up to 30Wfor each PoE port*
  • Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • Up to 820ftPoE**, Remote Camera Reboot, QoS,and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design


HARDWARE FEATURES
Interface8 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
Fan QuantityFanless
Installation Desktop
Wall Mount
Physical Security Lock
Power SupplyDC Power Adapter (Output: 53.5V DC / 1.31A)
PoE Ports (RJ45) Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 8 ports
PoE Budget: 64W available for all PoE+ ports, 30W max per port
Remote Camera Reboot
Up to 820ft (250m) PoE transmission distance**
Dimensions ( W x D x H )6.2 4.0 1.0 in (158 100.7 25.4 mm)
Surge ProtectionService port: 6 kV
PERFORMANCE
Switching Capacity16 Gbps
Packet Forwarding Rate11.904 Mpps
MAC Address Table8K
Packet Buffer Memory4 Mbit
Jumbo Frame15 KB
SOFTWARE FEATURES
Quality of Service 802.1p DSCP Priority
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP
L2 Multicast IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission MethodStore and Forward
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
OTHERS
CertificationFCC, CE, RoHS
Package Content ES208GP
Power Adapter
Power Cord
Installation Guide
Rubber Feet
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
