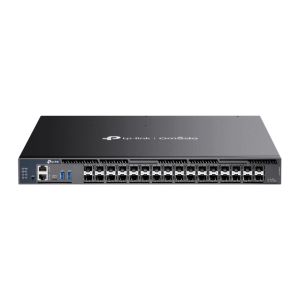

TP-Link SX6632YF Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

IMG 1 of 5
Our Price:
$6,714.40
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
559861
(?) Brand:
TP-Link
Manuf No:
SX6632YF
Shipping Weight:
6.64 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
SX6632YF, NWTLSX6632YF, NWTL-SX6632YF

SX6632YF

New

Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

  • 26 10GSFP+ slots and6 25G SFP28 slots
  • 820 Gbps switching capacity
  • Physical Stackingfor built-in redundancy and performance
  • L3 features:RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
  • Security Strategies:ACL, Port Security, DoS Defend,802.1X
  • Highly Available with two field-replaceablepower supplies*, VRRP, and ERPS
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI,SNMP,and RMON


HARDWARE FEATURES
Interface 6 10/25G SFP28 Slots
26 10G SFP+ Slots
2 USB 3.0 Ports
1 RJ45 Console Port
1 USB Type C Console Port
1 RJ45 Management Port
Fan QuantityFour field-replaceable and hot-swappable fans
Physical Security Lock
Power SupplyTwo field-replaceable and hot-swappable redundant power supplies (100240 VAC, 50/60 Hz)

*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
Max. Power Consumption86.7 W (110 V/60 Hz)
Dimensions ( W x D x H )17.3 15.0 1.7 in (440 380 44 mm)
MountingRack Mountable
Max. Heat Dissipation295.85 BTU/hr (110 V/60 Hz)
PERFORMANCE
Switching Capacity820 Gbps
Stacking Stacking Number: 8 in standalone mode, 4 in Omada controller mode
Stacking Port: 25G SFP28
Stack Bandwidth: Up to 300 Gbps (6 stack ports)
Packet Forwarding Rate610.1 Mpps
MAC Address Table128 K
Packet Buffer Memory8 MB
Jumbo Frame9 KB
SOFTWARE FEATURES
Quality of Service Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
Bandwidth Control
- Rate Limit
- Strom Control
Voice VLAN
User-Defined OUI
L3 Features Routing IP Interfaces
- Static Routing
- Host Route Table
- RIP v1/v2
- RIPng
- OSPFv2/v3
- VRRP
- ECMP
- ARP Proxy
DHCP
- DHCP Server
- DHCP Relay
- DHCPv6 Relay
- DHCP Snooping
- DHCPv6 Snooping
Multicast
- Multicast Table
- IGMP v1/v2/v3
- Static Multicast Routing
L2 and L2+ Features Switching
- Port MirroringSPAN
- RSPAN
- Loopback Detection
- Traffic Monitor
Trunking
- Static LAG
- LACP 802.3ad
Mac Address
- MAC Address Table
- Static MAC
- Dynamic MAC Address
- Filtering MAC Address
- MAC Flapping
STP
- STP 802.1d
- RSTP 802.1w
- MSTP 802.1s
- Loop/Root/TC Protect
- BPDU Protect/Filtering
ERPS
Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
Advanced Features Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

ISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow
VLAN IEEE 802.1q Tag VLAN
MAC VLAN
Protocol VLAN
VLAN VPN(QinQ)
Private VLAN
GARP/GVRP
Voice VLAN
Multicast VLAN
Management VLAN
Security Access Security
- Port/MAC/IP-based Access Control
- SSL
- SSH
Port Security
Port Isolation
CPU-Deffend
Time Range
- Time Range Defination
- Periodic Time Range
- Absolute Time Range
- Time Holiday
ACL
- Entries
- L2/L3/L4 ACL
- ACL Action
- ACL over VLAN
- ACL over Port
IP-MAC Binding
- IP+MAC+PORT+VID Binding
- Manual Binding
- ARP Scanning
- DHCP Filter
- DHCPv6 Filter
- DHCP Option 82
ARP Inspection (Dynamic ARP Inspection)
IP Source Guard
IPv6 Source Guard
ND Neighbor Discovery/ ND Snooping/ ND Filtering
DoS Defend
Authentication, Authorization & Accounting (AAA)
- 802.1X Port Authentication
- RADIUS Authentication
- RADIUS Accounting
- TACACS+ Authentication
Management Features
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management Features Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
OTHERS
Package Content SX6632YF Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature:
-5 C to 50 C (23 F to 122 F) @ 300 meters
-5 C to 45 C (23 F to 113 F) @ 2,000 meters
-5 C to 40 C (23 F to 104 F) @ 3,000 meters

Storage Temperature: -40 C to 70 (-40 to 158 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
