HOME / Back -> Networking -> Switches -> TP-Link

TP-Link OMADA 5-PORT EASY MANAGED 2.5G SWITCH, 2.5G(5), 10G SPF+(1), 5YR

IMG 1 of 5
Our Price:
$148.70
RRP:
$152.90
You Save:
$4.20
or quickly purchase this product
Backorder
Part Number:
563219
(?) Brand:
TP-Link
Manuf No:
ES206X-M2
ES206XM2
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
ES206XM2, ES206X-M2, 1210002600729

ES206X-M2

New

Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot

  • 5 2.5 Gbps RJ45 Ports
  • 1 10 Gbps SFP+ Slot
  • Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design


Omada 5-Port 2.5GEasy Managed
Switchwith 1 10G SFP+ Slot

ES206X-M2

5 2.5 Gbps RJ45 Ports

1 10 Gbps SFP+ Port

Fanless Design for Silent Operation

Easy Centralised Management

Omada App

Traffic Separation

Traffic
Prioritisation

Automatic Loop Prevention

Unlock the HighestPerformance of 2.5G
Multi-Gig Bandwidth andDevices

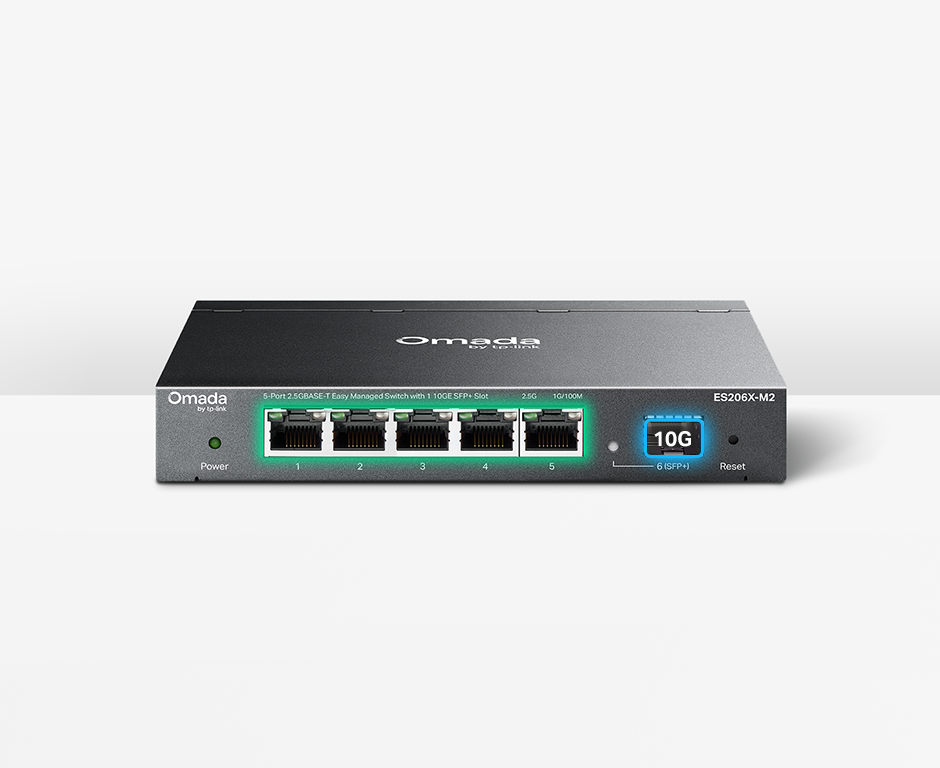

ES206X-M2 Network Switch

2.5G Wi-Fi7/6 APs

2.5G Gaming Computer

2.5G NAS/Server

4K Video

2.5Gbps
2.5
1Gbps

Cost-Performance Solution

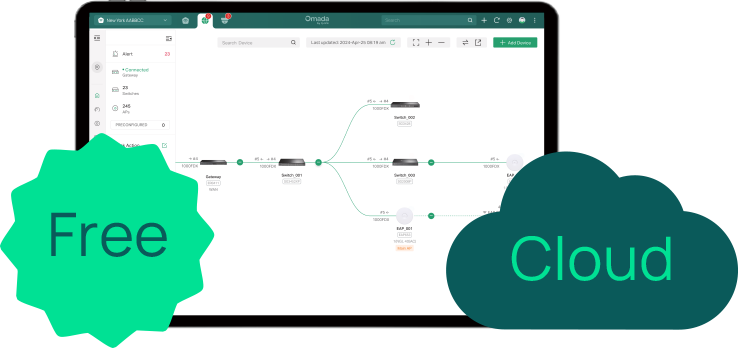

Free Cloud

Looking for free, worry-free cloud management for life?

Omada Central Essentials

Lifetime Free Cloud without Additional Fees

Phone Badge

On-site work eating up time and resources?

Reduce Maintenance Costs

Manage and Maintain from Anywhere

Works with Omada Central Essentials
for Free and Easy Cloud Management

Omada Central Essentials provides free and easy-to-use cloud centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

CompactandDurableMetalCasing, Featuring
Desktop/Wall Mountingand a Fanless Design

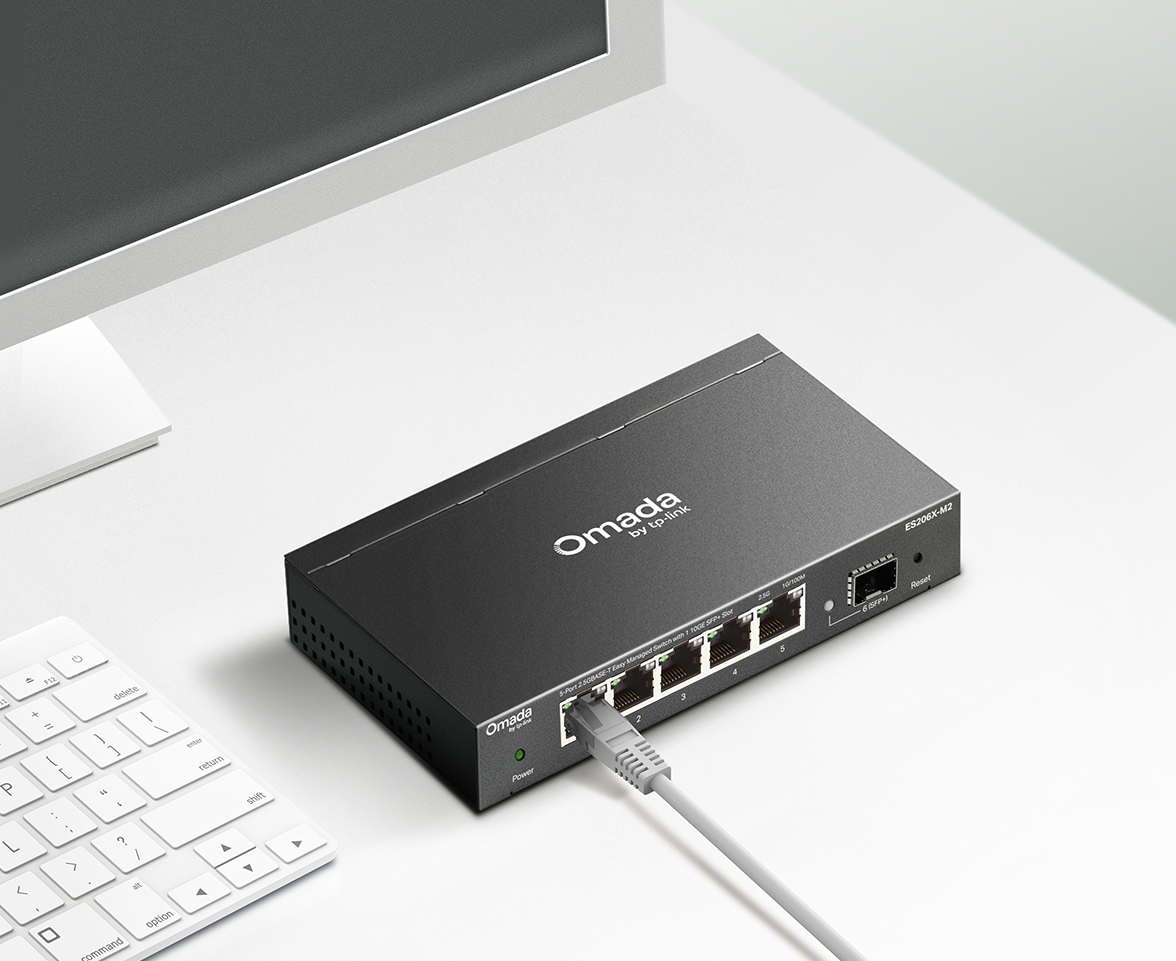

Omada device on desktop

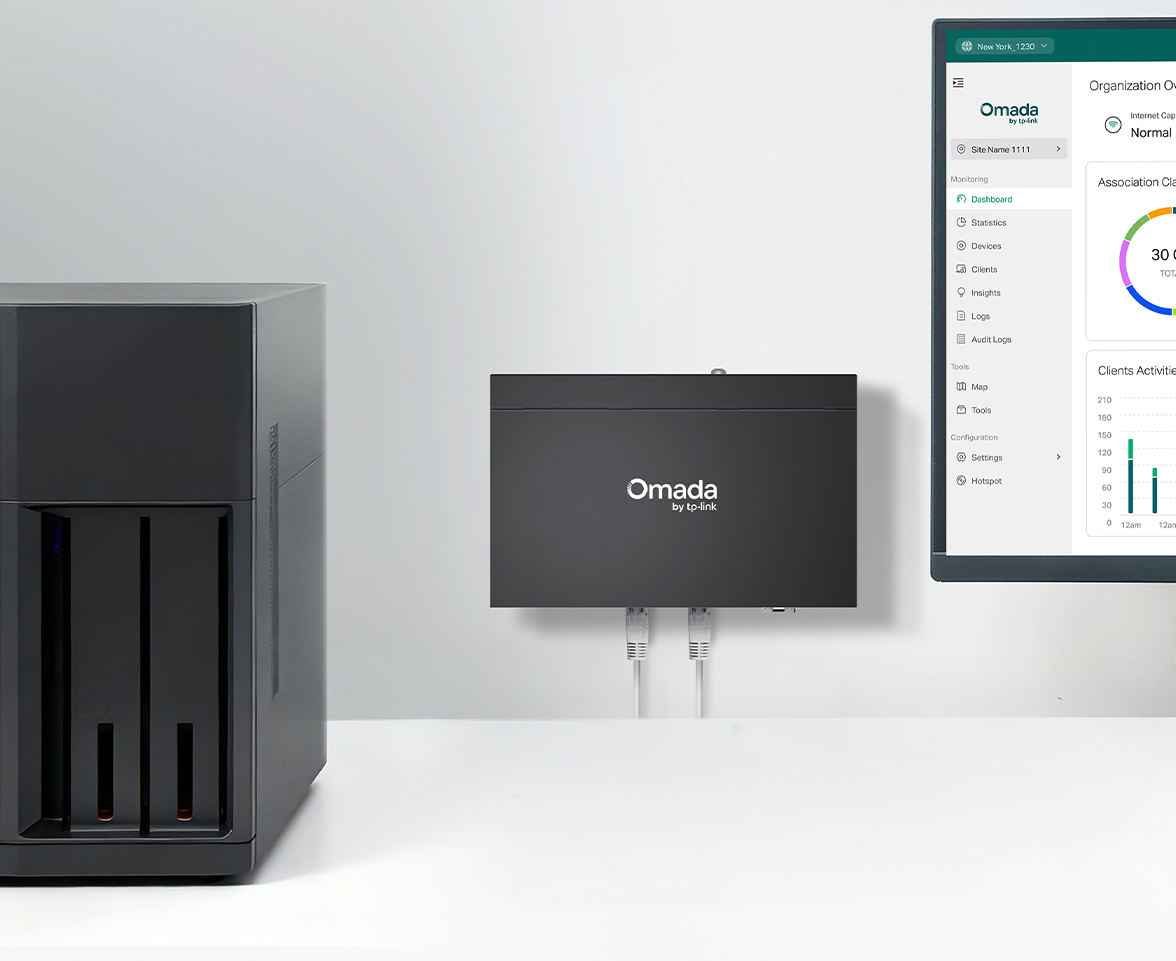

Omada device wall-mounted

These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Om



HARDWARE FEATURES
Interface 5 2.5 Gbps RJ45 Ports
1 10 Gbps SFP+ Slot
Auto-Negotiation/Auto MDI/MDIX
Fan QuantityFanless
Installation Desktop
Wall Mount
Physical Security Lock
Power SupplyDC Power Adapter (Output: 12 VDC / 1 A)
Dimensions ( W x D x H )6.2 4.0 1.0 in (158 100.7 25.4 mm)
Surge Protection6kV for Ethernet Ports
PERFORMANCE
Packet Buffer Memory640 KB
Jumbo Frame10 KB
Switching Capacity45 Gbps
Packet Forwarding Rate33.48 Mpps
MAC Address Table16K
SOFTWARE FEATURES
Quality of Service Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP
L2 Multicast IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission MethodStore-And-Forward
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
OTHERS
CertificationFCC, CE, RoHS
Package Content ES206X-M2
Power Adapter
Rubber Feet
Installation Guide
Environment Operating Temperature: -5~40 (23~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
