| Ports | 36 x 10/100/1000 (UPOE) + 2 x 40Gb Ethernet + 12 x 1/2.5/5/10GBase-T |
| Power | AC 120/230 V (50 - 60 Hz) |
| Weight | 7.65 kg |
| Subtype | Gigabit Ethernet |
| Capacity | IPv4 routes: 32000 ? IPv6 routes: 16000 ? Multicast scale: 8000 ? QoS scale entries: 5120 ? ACL scale entries: 5120 ? VLANs supported: 4094 ? Switched virtual interfaces (SVIs): 1000 |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology |
| PoE Budget | 675 W |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Switching capacity: 472 Gbps ? Switching capacity with stacking: 792 Gbps ? Forwarding rate: 351.19 Mpps ? Forwarding rate with stacking: 589.28 Mpps |
| Enclosure Type | Rack-mountable |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 48.8 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bt, Wi-Fi CERTIFIED 6 |
| Jumbo Frame Support | 9198 bytes |

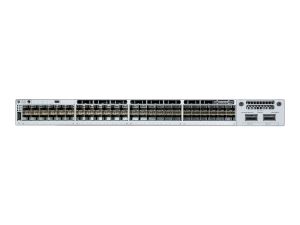

| Product Description | Cisco Catalyst 9300L - Network Advantage - switch - 48 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | UPOE |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
