| Ports | 48 x 10/100/1000 (UPOE) + 4 x 25 Gigabit SFP (uplink) |
| Power | AC 100-240 V (50 - 60 Hz) |
| Weight | 5.45 kg |
| Subtype | Gigabit Ethernet |
| Capacity | IPv4 routes: 32000 ? IPv6 routes: 16000 ? Multicast scale: 8000 ? QoS scale entries: 5120 ? ACL scale entries: 5120 ? Buffer capacity (MB): 16 ? FNF entries: 64000 ? VLAN IDs: 4094 ? Switched virtual interfaces (SVIs): 1000 ? Routed ports: 416 ? OSPF routes: 1000 |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN), NetFlow, Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, hot swappable 3 fans, built-in ASIC, Control plane protection (CoPP), Software Defined Networking (SDN), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Media Access Control Security (MACsec), Cisco IP Service-Level Agreement (IP SLA), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology, Cisco Discovery Protocol (CDP), Preboot Execution Environment |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Stacking bandwidth: 320 Gbps ? Switching capacity: 296 Gbps ? Switching capacity with stacking: 616 Gbps ? Forwarding rate: 220.22 Mpps ? Forwarding rate with stacking: 458.3 Mpps |
| Enclosure Type | Rack-mountable |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Dimensions (WxDxH) | 44.4 cm x 33.4 cm x 4.3 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bz, IEEE 802.3bt, Wi-Fi CERTIFIED 6 |
| Jumbo Frame Support | 9198 bytes |

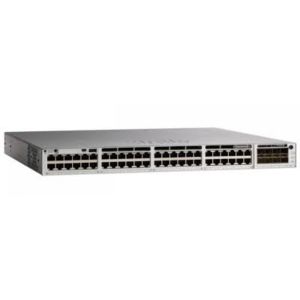

| Product Description | Cisco Catalyst 9300L Mini - Network Essentials - switch - 48 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | UPOE |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
