All stock codes associated to this product
4752224002174, CRS31816P2S+OUT, CRS318-16P-2S+OUT

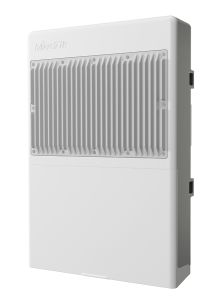

MikroTik CRS318-16P-2S+OUT netPower 16P 16 Gigabit PoE ports 2 SFP+ IP55
Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.
Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments from damp attics and shafts to towers, masts and poles with hose clamps.
netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).
* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W
Specifications:
Product code: CRS318-16P-2S+OUT
Architecture: ARM 32bit
CPU: 98DX226S
CPU core count: 1
CPU nominal frequency: 800 MHz
Dimensions: 303 x 212 x 78 mm
RouterOS licence: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40C to 70C
Powering:
Number of DC inputs: 2 (DC jack)
DC jack input Voltage: 18-30 V / 48-57 V
Max power consumption: 316 W
Max power consumption without attachments: 16 W
Cooling type: Passive
PoE-out:
PoE-out ports: Ether1-Ether16
PoE out: 802.3af/at
Max out per port output (input 18-30 V): 1.1 A
Max out per port output (input 30-57 V): 0.6 A
Max total out (A): 2.8A (18V-30V) & 1.4A (48V-57V) x2 A
Ethernet:
10/100/1000 Ethernet ports: 16
Number of 1G Ethernet ports with PoE-out: 16
Fibre:
SFP+ ports: 2
Other:
CPU temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals:
Certification: CE, EAC, ROHS
IP: IP54
