MikroTik LAMPGM&RG520F-EU LAMP 5G R16 IP67 Outdoor 5G Router

Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Networking -> Modems - Mobile | 4g/5g Modems -> MikroTik

MikroTik LAMPGM&RG520F-EU LAMP 5G R16 IP67 Outdoor 5G Router

Our Price:

$571.55

Qty:

Add To Cart

or quickly purchase this product

Buy Now

In stock for shippingShips from our warehouse in 1-3 business days

Part Number:

571600

(?) Brand:

MikroTik Web Site

Manuf No:

LAMPGM&RG520F-EU
LAMPGM&RG520FEU

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Details Files Finance Images & Video

All stock codes associated to this product

LAMPGM&RG520FEU, LAMPGM&RG520F-EU

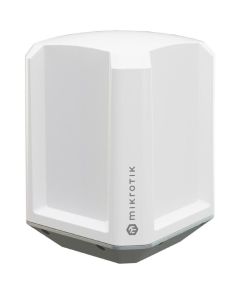

MikroTik LAMP 5G R16 IP67 Outdoor 5G Router

LAMPGM&RG520F-EU is an outdoor 5G RouterOS device designed for locations where there is not one perfect tower to aim at. Its omnidirectional antenna system, built-in eSIM, microSIM support and RG520F-EU modem help keep deployments connected to the best available mobile network.

Designed for urban deployments, backup connectivity, ports, industrial sites and demanding outdoor or marine environments, LAMP 5G R16 combines Gigabit Ethernet with PoE-in, GNSS positioning and an IP67 enclosure with EN 60945 maritime certification.

MikroTik LAMP 5G R16 Ethernet and underside view

Key Features

Outdoor 5G RouterOS device with omnidirectional antennas.
Built-in eSIM with MikroTik Connectivity support, plus one microSIM slot.
Quectel RG520F-EU modem with 5G SA/NSA, LTE Cat 20 and 3G support.
4x4 MIMO downlink and 2x2 MIMO uplink for 5G/LTE operation.
Gigabit Ethernet with 802.3af/at PoE-in.
GNSS support for GPS, GLONASS, Galileo, BeiDou and QZSS.
IP67-rated enclosure and EN 60945 maritime certification.
Stainless-steel mount, Gigabit PoE injector and 24 V 0.5 A power adapter included.

Technical Specifications

Product code	LAMPGM&RG520F-EU
CPU	Dual-core 88F3720 800 MHz
CPU architecture	ARM 64-bit
RAM / storage	512 MB DDR3L / 32 MB Flash
Ethernet	1 x 1G Ethernet port
SIM support	1 x microSIM, eSIM
Modem	R11mL-RG520F-EU / RG520F-EU
5G SA performance	DL 4.2 Gbps; UL 900 Mbps
5G NSA performance	DL 5.0 Gbps; UL 650 Mbps
LTE category	Cat 20, 2.0 Gbps downlink / 200 Mbps uplink
MIMO	4x4 DL, 2x2 UL
Dimensions with mount	276 x 267 x 133 mm
Weather rating	IP67
Operating system	RouterOS v7, License level 3
Operating temperature	-40C to +70C
Power input	12-56 V PoE-in, 802.3af/at
Max power consumption	10 W
Shipping weight	3 kg

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (MikroTik) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
