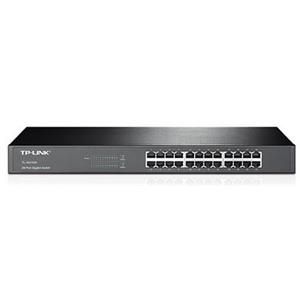

TP-Link TL-SG1024 24-Port 10/100/1000 Gigabit Switch - Rackmountable

IMG 1 of 1
Our Price:
$199.60
RRP:
$209.00
You Save:
$9.40
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
73117
(?) Brand:
TP-Link
Manuf No:
TL-SG1024
TLSG1024
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
TLSG1024, TL-SG1024, NWTLSG1024, NWTL-SG1024, TL-SG1024, 1688125, 6935364020101, II12668, TL-SG1024, TL30223, 1210002616799

The TL-SG1024 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of Offices and workgroup networks.

  • Fully compliant with IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX) and IEEE 802.3ab (1000BASE-T)
  • 24 10/100/1000Mbps Auto-negotiation Ethernet Ports
  • All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
  • Supports Auto-MDI/MDIX function
  • Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
  • Store and forward Switching scheme

  • Standard
    - IEEE 802.3
    - IEEE 802.3u
    - IEEE 802.3ab
  • Port: 24 10/100/1000M Auto-Negotiation RJ45 ports supporting Auto MDI/MDIX
  • Network Media:
    - 10Base-T: Cat. 3 or above UTP
    - 100Base-TX: Cat.5 UTP
    - 1000Base-T: Cat.5 UTP
  • Filter and transmission rate
    - 10Mbps: 14880pps
    - 100Mbps: 148800pps
    - 1000Mbps: 1488000pps
  • LED Indicator
    - Each port: Link/Act, 10M/100M, 1000M
    - Others: Power
  • Dimension (L x W x H): 17.3 x 7.1 x 1.7 in.(440 x 180 x 44 mm)
  • Environment
    - Operation Temperature: 0C-40C
    - Store Temperature: -40C-70C
    - Operation Humidity: 10%-90% RH Non-condensing
    - Store Humidity: 5%-90% RH Non-condensing
  • Power: Input: 100-240VAC, 50/60Hz

No additional files, specification sheets, guides or documentation found for product.

Warranty: 60 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
