All stock codes associated to this product
PIB2MS1, 3572149

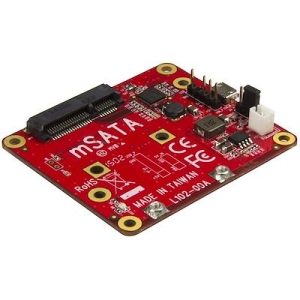

Startech USB to mSATA Converter for Raspberry Pi and Development
Boards
Overview
Increase the data storage capacity of your Raspberry Pi or other development
board, by connecting it directly to an mSATA drive. Perfect for custom projects
and applications, this USB to mSATA converter supports all models of Raspberry
Pi as well as other development boards.
Add storage capacity to your development
board
This convenient USB 2.0 mSATA converter lets you overcome data storage
limitations by enabling you to connect an mSATA drive through your boards USB-A
port.
A convenient integrated solution
The USB to mSATA converter integrates seamlessly with your existing
development board. Its the perfect addition for development-board based
applications such as surveillance, media players and servers, digital signage
and IoT/automation solutions. It allows you to utilize your mSATA drives with
your development board, and take advantage of the small form factor of
mini-SATA, ideal for applications with space limitations.
Easy to install
Compatible with SATA I, SATA II and SATA III drives, the converter is easy to
install and doesnt require any device driver installation. It comes with a USB
cable and all mounting accessories, including standoffs, so integrating it with
your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running
quickly. The PIB2MS1 is backed by a StarTech.com 2-year warranty and free
lifetime technical support.
Specifications
|
Warranty
Information |
Warranty |
2
Years |
|
Connector(s) |
1
- Drive Connectors |
mSATA
(52 pin, Mini SATA) Slot |
|
1
- Host Connectors |
USB
Micro-B (5 pin) |
|
Environmental |
Operating
Temperature |
5C
to 50C (41F to 122F) |
|
Storage
Temperature |
-25C
to 70C (-13F to 158F) |
|
Humidity |
15%
~ 90% RH |
|
Hardware |
Interface |
USB
2.0 |
|
Bus
Type |
USB
2.0 |
|
Number
of Drives |
1 |
|
Drive
Size |
mSATA
(Full Size) |
|
Compatible
Drive Types |
mSATA
(Mini SATA) |
|
Chipset
ID |
Renesas/NEC
- PD720231A |
|
Packaging
Information |
Package
Height |
1.3
in [32.0 mm] |
|
Package
Length |
6.9
in [17.5 cm] |
|
Shipping
(Package) Weight |
3.5
oz [100.0 g] |
|
Package
Width |
5.7
in [14.4 cm] |
|
Performance |
Maximum
Data Transfer Rate |
480
Mbps |
|
Type
and Rate |
USB
2.0 - 480 Mbit/s |
|
|
SATA
III (6 Gbps) |
|
Hardware
Raid Supported |
No |
|
MTBF |
5,077,966
hrs |
|
Physical
Characteristics |
Color |
Red |
|
Product
Length |
2.6
in [65.0 mm] |
|
Product
Width |
2.2
in [55.0 mm] |
|
Product
Height |
0.4
in [11.0 mm] |
|
Weight
of Product |
0.6
oz [18.2 g] |
|
Power |
Power
Source |
USB-Powered |
|
Software |
OS
Compatibility |
OS
independent; No software or drivers required |
|
What's
in the Box |
1
- Included in Package |
USB
to mSATA converter |
|
|
USB-A
to Micro-B cable |
|
4
- Included in Package |
standoffs |
|
|
nuts |
|
|
screws |
|
2
- Included in Package |
mSATA
mounting screws |
|
1
- Included in Package |
quick-start
guide |
