All stock codes associated to this product
EXSFP1GELXST, 3572147

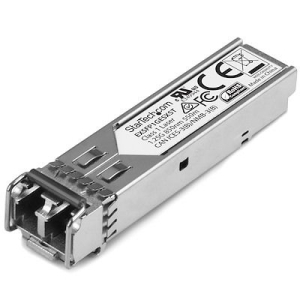

Startech Juniper EX-SFP-1GE-LX Compatible SFP Module - 1000BASE-LX -
1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC
10km - 1310nm - DDM
Overview
The EXSFP1GELXST is a Juniper EX-SFP-1GE-LX compatible fiber transceiver
module that has been designed, programmed and tested to work with Juniper brand
switches and routers. It delivers dependable 1GbE connectivity over fiber cable,
for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2
mi).
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 3,092,408 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements
seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime
warranty and free lifetime multilingual technical support. StarTech.com offers a
wide variety of SFP modules and direct-attach SFP cables, providing the
convenience and reliability you need to ensure dependable network
performance.
Specifications
|
Warranty
Information |
Warranty |
Lifetime |
|
Color |
Silver |
|
Material |
Aluminum |
|
System
and Cable Requirements |
MSA
or Juniper Networks compliant SFP port |
|
|
For
use in Gigabit fiber networking equipment and media
converters |
|
Connector(s) |
1
- Connector A |
SFP
Slot |
|
1
- Local Unit Connectors |
Fiber
Optic LC Duplex |
|
Environmental |
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Humidity |
5~95%
RH |
|
Hardware |
Industry
Standards |
IEEE
802.3z 1000BASE-LX |
|
Compatible
Brand |
Juniper |
|
Packaging
Information |
Package
Height |
1.3
in [33.0 mm] |
|
Package
Length |
3.7
in [94.0 mm] |
|
Shipping
(Package) Weight |
1.7
oz [48.0 g] |
|
Package
Width |
4.7
in [11.9 cm] |
|
Performance |
Maximum
Data Transfer Rate |
1.25
Gbps |
|
Max
Transfer Distance |
10
km (6.2 mi) |
|
Type |
Single
Mode |
|
Wavelength |
1310nm |
|
Fiber
Operating Mode |
Full-Duplex |
|
DDM |
Yes |
|
Compatible
Networks |
1000
Mbps (1 Gbps) |
|
MTBF |
3,092,408
hours |
|
Power
Consumption (In Watts) |
<
1 W |
|
Physical
Characteristics |
Weight
of Product |
0.7
oz [19.0 g] |
|
Product
Length |
2.2
in [56.6 mm] |
|
Product
Width |
0.5
in [13.7 mm] |
|
Product
Height |
0.5
in [12.5 mm] |
|
What's
in the Box |
1
- Included in Package |
SFP
transceiver |
