TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch

IMG 1 of 4
Our Price:
$285.80
or quickly purchase this product
Backorder
Part Number:
561862
(?) Brand:
TP-Link
Manuf No:
ES206XPP-M2
ES206XPPM2
Shipping Weight:
1.6 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
ES206XPPM2, ES206XPP-M2, NWTLES206XPPM2, NWTL-ES206XPP-M2

ES206XPP-M2

New

Omada 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++

  • 5 2.5 Gbps RJ45 Ports (4 802.3af/at/bt-compliant PoE++)
  • 1 10 Gbps SFP+ Slot
  • 120W PoE Budget, with up to 90W for each PoE port*
  • Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

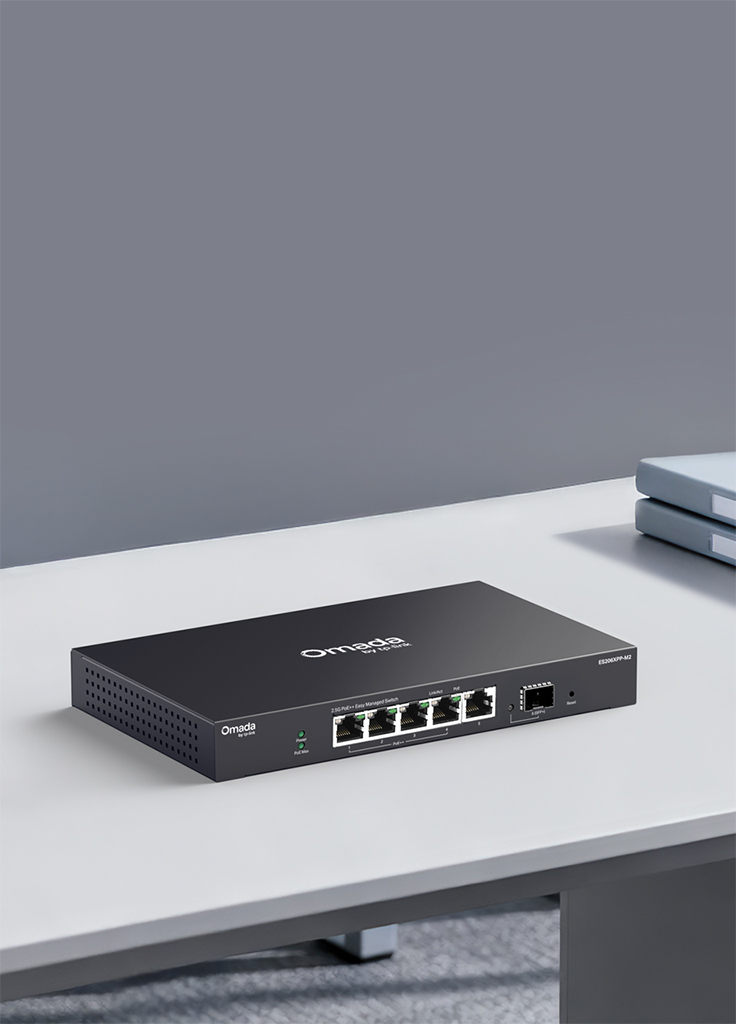

ES206X-M2

Omada 5-Port2.5G+1-Port 10G
EasyManagedSwitch with4-Port PoE++

ES206XPP-M2

5 2.5G RJ45 Ports

1 SFP+ Slot

120W Total PoE Budget*

Fanless Design for Silent Operation

Easy Centralised Management

Omada App

Traffic

Separation

Traffic

Prioritisation

Power over Ethernet, Flexible Network Deployment

Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

4 2.5G

PoE++

RJ45 Ports

Up to

90W

per Port

Total

120W

PoE Budget

Compatible with

802.3af/at/bt

PoE and non-PoE devices

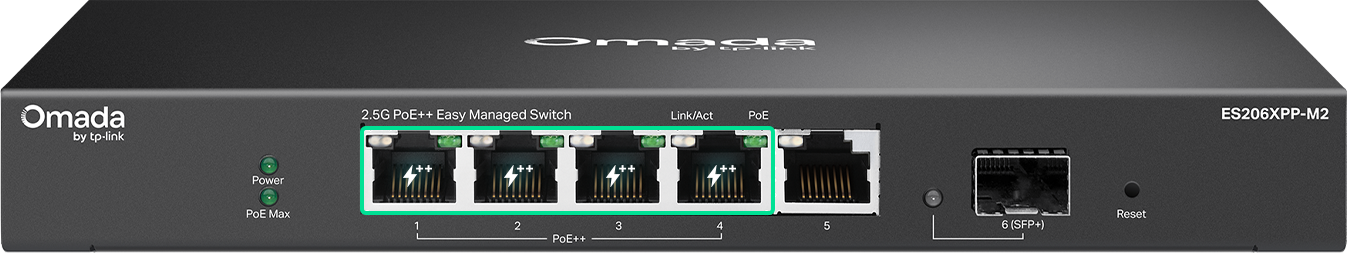

Network
Access Point

Access Point

Gaming Consoles

Gaming Consoles

4k Video

8K/4K Video

Computer

Computer

Unlock the HighestPerformance of 2.5G
Multi-Gig Bandwidth andDevices

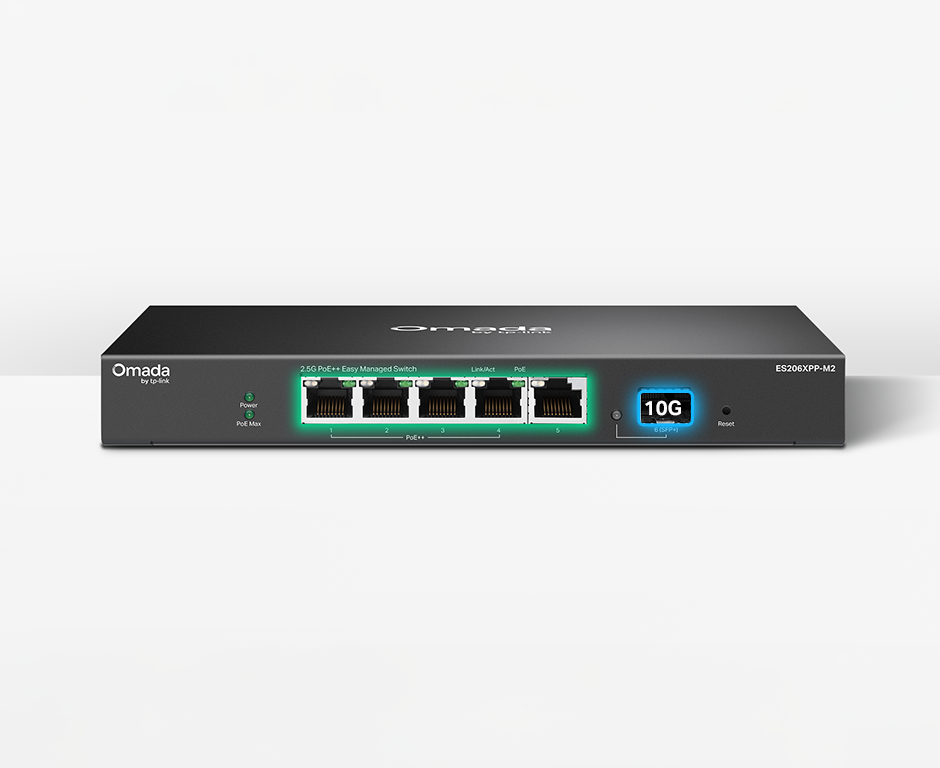

ES206X-M2 Network Switch

2.5G WiFi7/6 APs

2.5G Gaming Computer

2.5G NAS/Server

PoE Lighting

2.5Gbps
2.5
1Gbps

Works with Omada Central Essentials
for Free and Easy Cloud Management

Omada Central Essentials provides free and easy-to-use centralised cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Cost-Performance Solution

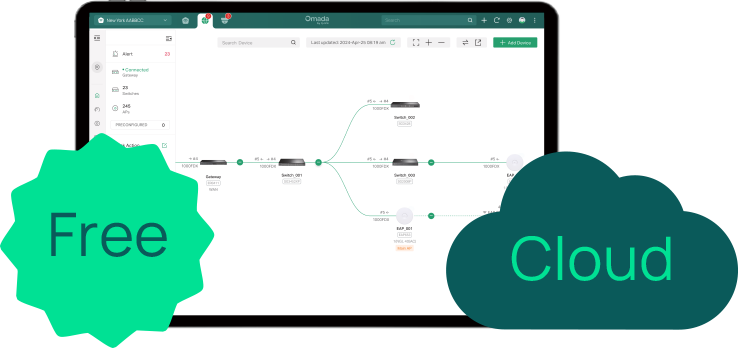

Free Cloud

Looking for free, worry-free cloud management for life?

Omada Central Essentials

Lifetime Free Cloud Without Additional Fees

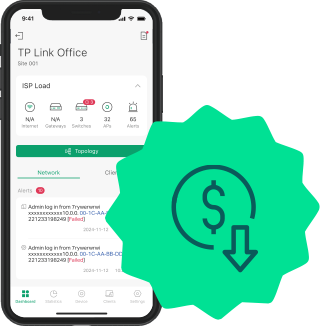

Phone Badge

On-site work eating up time and resources?

Reduce Maintenance Costs

Manage and Maintain from Anywhere

Multiple Application Scenarios

Wi-Fi Coverage

Wi-Fi Coverage

Works with Wi-Fi6/7
Access Points

Conference Calls

LAN Party

Works with Gaming Consoles and TVs

Wired Connections

Wired Connections

Works with Non-PoE Devices such as PCs
and Printers



HARDWARE FEATURES
Interface 5 2.5 Gbps RJ45 Ports(4 802.3af/at/bt-compliant PoE++)
1 10 Gbps SFP+ Slot
Auto-Negotiation/Auto MDI/MDIX
Fan QuantityFanless
Installation Desktop
Wall Mount
Physical Security Lock
Power SupplyDC Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45) Standard: 802.3af/at/bt PoE++ compliant
PoE Ports: 4 Ports
PoE Budget: 120W available for all PoE++ ports, 90W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery
Dimensions ( W x D x H )8.2 5.0 1.0 in (209 126 26 mm)
Surge Protection6 kV
PERFORMANCE
Packet Buffer Memory640 KB
Jumbo Frame10 KB
Switching Capacity45 Gbps
Packet Forwarding Rate33.48 Mpps
MAC Address Table16K
SOFTWARE FEATURES
Quality of Service Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP
L2 Multicast IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission MethodStore-And-Forward
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
OTHERS
CertificationFCC, CE, RoHS
Package Content ES206XPP-M2
Power Adapter
Power Cord
Rubber Feet
Installation Guide
Environment Operating Temperature: -5~40 (23~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
For additional version information, please go to the support page.

*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.

Port-based/802.1p/DSCP QoS are supported under Standalone Mode.

These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to theOmada Cloud-Based Controller (Omada Cloud Standard) Product ListorOmada Cloud Essentials Product Listto find all the supported models.

This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
