All stock codes associated to this product
ER6202, UPAER6202, UPA-ER6202
Easy to choose, install and accessorize
APC quality, reliability and solution compatibility
Standard 5 year factory warranty for peace of mind
Variety of configurations for high security & affordibility
suitable for IT server, network, storage, and converged IT
Description

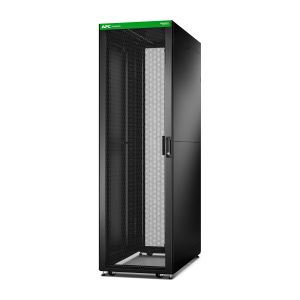

Easy Rack ER6202 is EIA-310 standard pre-assembled IT enclosure with essential features for fast and easy deployment in low to high density server applications. ER6202 is an ideal choice for SMB and networking applications with its 42U height, ventilated door with 81% perforation and load ratings static 1200kg & dynamic 600kg. This rack comes in 600mm Width & 1000mm Depth, with Roof, keys, levelling feet, casters, side panels, mounting hardware, PDU mounting brackets and without bottom. With UL 2146 certification, this enclosure features integrated electrical grounding, ensuring the roof, front and rear doors are grounded to the frame. This rack cabinet ships fully assembled for faster installation or choose to ship unassembled for storage or transit in tight spaces and prefer to assemble onsite. Easy Rack is designed with multi functional roof for managing cables & proper airflow and have rear accesory brackets for toolless installations. Easy Racks are easy to choose, install and accessorize with cooling, cable management & PDUs, including recently launched feature-rich, Easy Rack PDU series. Enclosures have been tested and approved to be combined with proper bolt down accessories to meet various seismic requirements. This is compatible with Schneider's EcoStruxure IT, allowing remote monitoring of on-premise and distributed IT infrastructure from anywhere, at any time, via any device.
Specifications
Overview| Lead time | Usually in Stock |
|---|
Main| Product or component type | Rack enclosure |
|---|
| Number of rack unit | 42U |
|---|
| Provided equipment | Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels |
|---|
Physical| Height | 1991 mm |
|---|
| Width | 600 mm |
|---|
| Depth | 1000 mm |
|---|
| Net weight | 100.4 kg |
|---|
| Colour | Black |
|---|
| Mounting mode | Not rack-mountable |
|---|
| Maximum mounting depth | 838.2 mm |
|---|
| Minimum mounting depth | 190.5 mm |
|---|
| Rack width | 19" |
|---|
| Marking | 18 gauge front door
19 gauge rear door
16 gauge post
14 gauge EIA mounting rail |
|---|
| Permanent permissible load | 1199.8 kg static
599.6 kg dynamic |
|---|
Conformance| Standards | UL 2416
EIA-310E |
|---|
Packing Units| Unit Type of Package 1 | PCE |
|---|
| Number of Units in Package 1 | 1 |
|---|
| Package 1 Height | 212.000 cm |
|---|
| Package 1 Width | 105.000 cm |
|---|
| Package 1 Length | 65.000 cm |
|---|
| Package 1 Weight | 106.000 kg |
|---|
| Pallet layers | 1 |
|---|
Contractual warranty| Warranty (in months) | 60 |
|---|
